MarMotion | N500

Lighter weight allows greater accelerations.

MarMotion | Ball cage

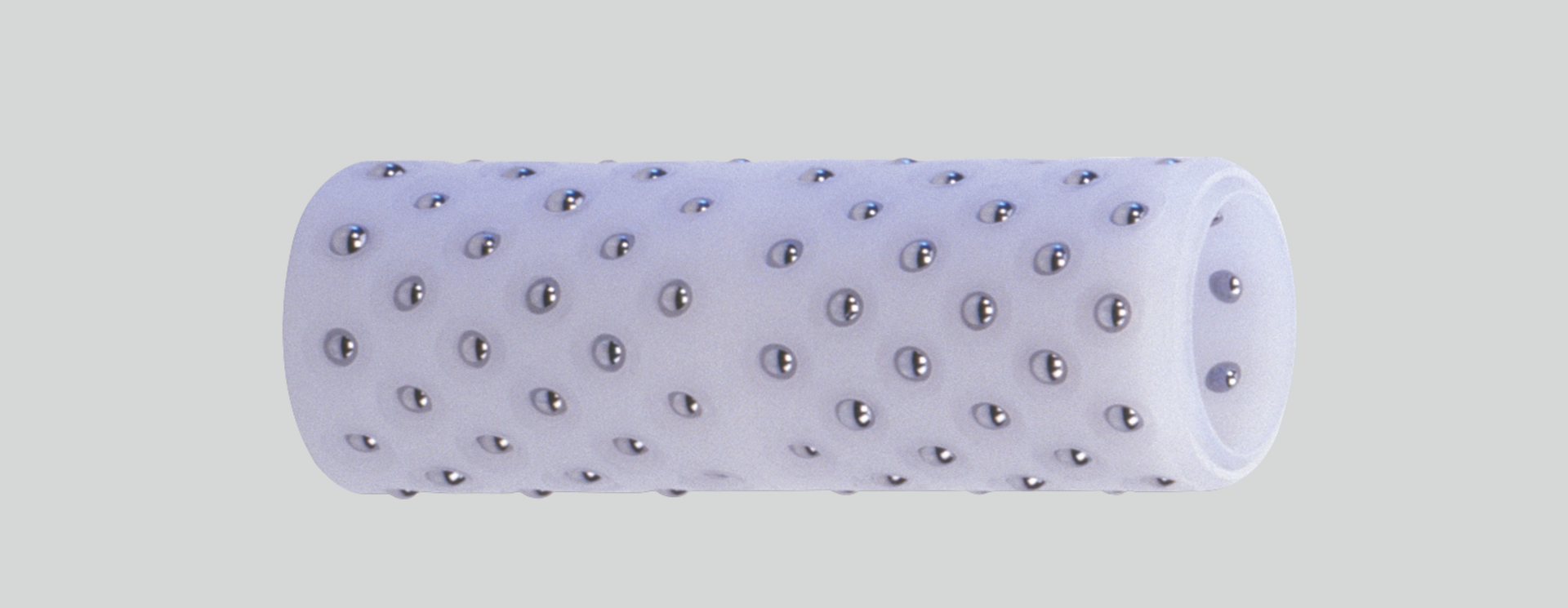

N500 ball cage made of plastic

Ball cage made of polyacetal resin (POM) with steel balls.

  • The light weight of the plastic allows high accelerations.
  • Excellent dry run properties.
  • Maximum smoothness.

Product finder
6 Products
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):10 mm Length (l2): 21 mm Ball diameter (k): 2.5 mm

Details
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):10 mm Length (l2): 27 mm Ball diameter (k): 2.5 mm

Details
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):10 mm Length (l2): 42 mm Ball diameter (k): 2.5 mm

Details
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):10 mm Length (l2): 54 mm Ball diameter (k): 2.5 mm

Details
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):12 mm Length (l2): 21 mm Ball diameter (k): 2 mm

Details
Ball Cage N500
Ball Cage N500

Shaft diameter (dw):12 mm Length (l2): 42 mm Ball diameter (k): 2 mm

Details
